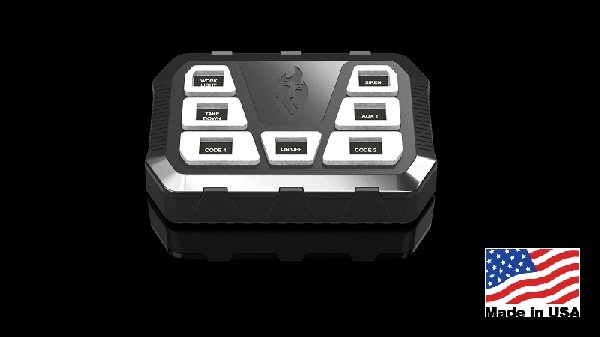

" IP-67 water proof system
" Input Voltage: 11-16 VDC
" 7, back-lit, push-feel buttons
" 6 programmable outputs: 5 Amps
" Integrated 2 channel wigwag
flasher
" Includes 50 standard function
labels
" Implements 6 rugged, solid
state relays
" Includes surface mount and
swivel mount bracket
" Dimensions of controller: 4" L
x 2.75" W x 0.75" H
" Compatible with all other
lighting and vehicle equipment
" Ability to program buttons as:
On/Off or Momentary
" Color coded back lit LEDs
(Bright Green for ON/ Dim Green
for OFF)
|
|
" 5 year warranty
" All in one controller
" Input Voltage: 11-16 VDC
" 18, back-lit, push-feel buttons
" 4 position programmable slide
switch
" Includes U-shaped aluminum
bracket
" Integrated traffic advisor with
8 outputs
" Implements rugged, solid state
relays
" 8 positive (+) or ground (-)
activated inputs
" 17 programmable outputs: 10
Amps (+)
" 1 programmable outputs: 3 Amps
(-)
" 2 programmable, 4 output groups: 20 Amps
" 1 programmable 4 output
continuous current: 30 Amps
" Integrated 2 channel Wigwag/LED
flasher rated at 3 Amps
" Includes wire connectors for
easy installation
" USB port provides easy access
for programming
" Includes 50 standard function
labels per button
" Dimensions of power supply: 6"
L x 4" W x 1.5" H
" Dimensions of controller: 6.8"
L x 3.5" W x 1.3" H
" Programed using our Feniex
designed Windows application
" Back-lit LEDs can be adjusted
for day or night time use
" Compatible with all other
lighting and vehicle equipment
" Ability to program buttons as:
On/Off, Momentary, Timer
" Bluetooth add on allows for
phone or tablet wireless control
" Color coded back lit LEDs (Red
indicator for on/Green for off)
" Includes 15 ft of RJ-45 cable
from controller to power supply
|
