" 5 year warranty
" All in one controller
" Input Voltage: 11-16 VDC
" 18, back-lit, push-feel buttons
" 4 position programmable slide
switch
" Includes U-shaped aluminum
bracket
" Integrated traffic advisor with
8 outputs
" Implements rugged, solid state
relays
" 8 positive (+) or ground (-)
activated inputs
" 17 programmable outputs: 10
Amps (+)
" 1 programmable outputs: 3 Amps
(-)
" 2 programmable, 4 output groups: 20 Amps
" 1 programmable 4 output
continuous current: 30 Amps
" Integrated 2 channel Wigwag/LED
flasher rated at 3 Amps
" Includes wire connectors for
easy installation
" USB port provides easy access
for programming

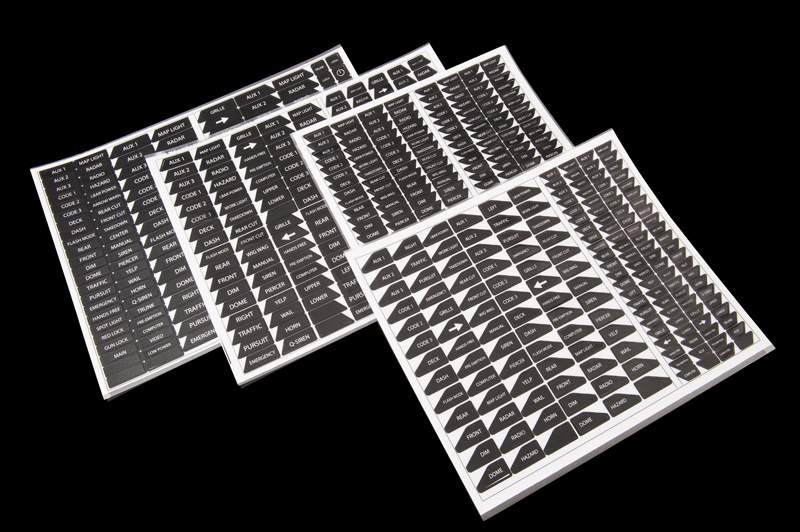

" Includes 50 standard function
labels per button

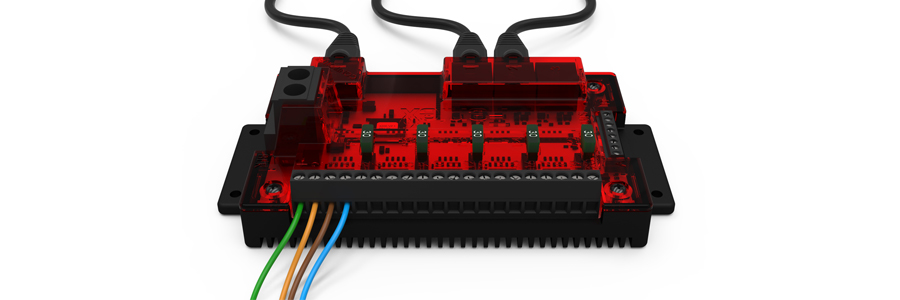

" Dimensions of power supply: 6"
L x 4" W x 1.5" H

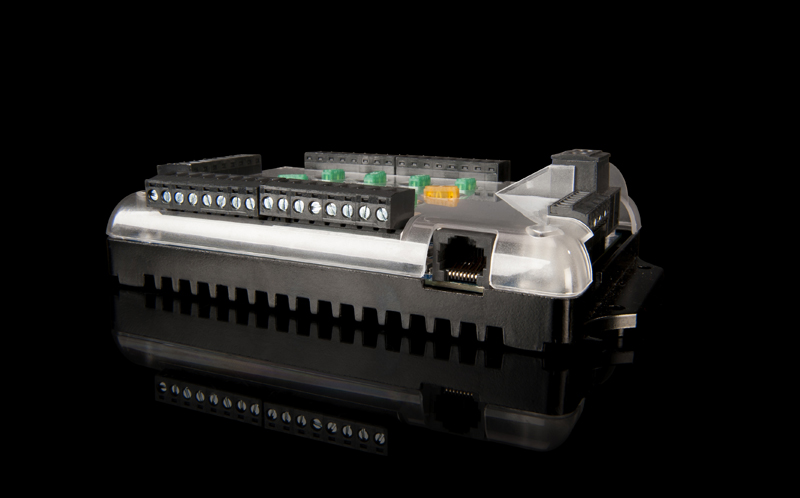

" Dimensions of controller: 6.8"
L x 3.5" W x 1.3" H
" Programed using our Feniex
designed Windows application
" Back-lit LEDs can be adjusted
for day or night time use
" Compatible with all other
lighting and vehicle equipment
" Ability to program buttons as:
On/Off, Momentary, Timer
" Bluetooth add on allows for
phone or tablet wireless control
" Color coded back lit LEDs (Red
indicator for on/Green for off)
" Includes 15 ft of RJ-45 cable
from controller to power supply
